- Light-curing 3D printing WEBSITE POSITION ：Home -- Products -- Light-curing 3D printing
-

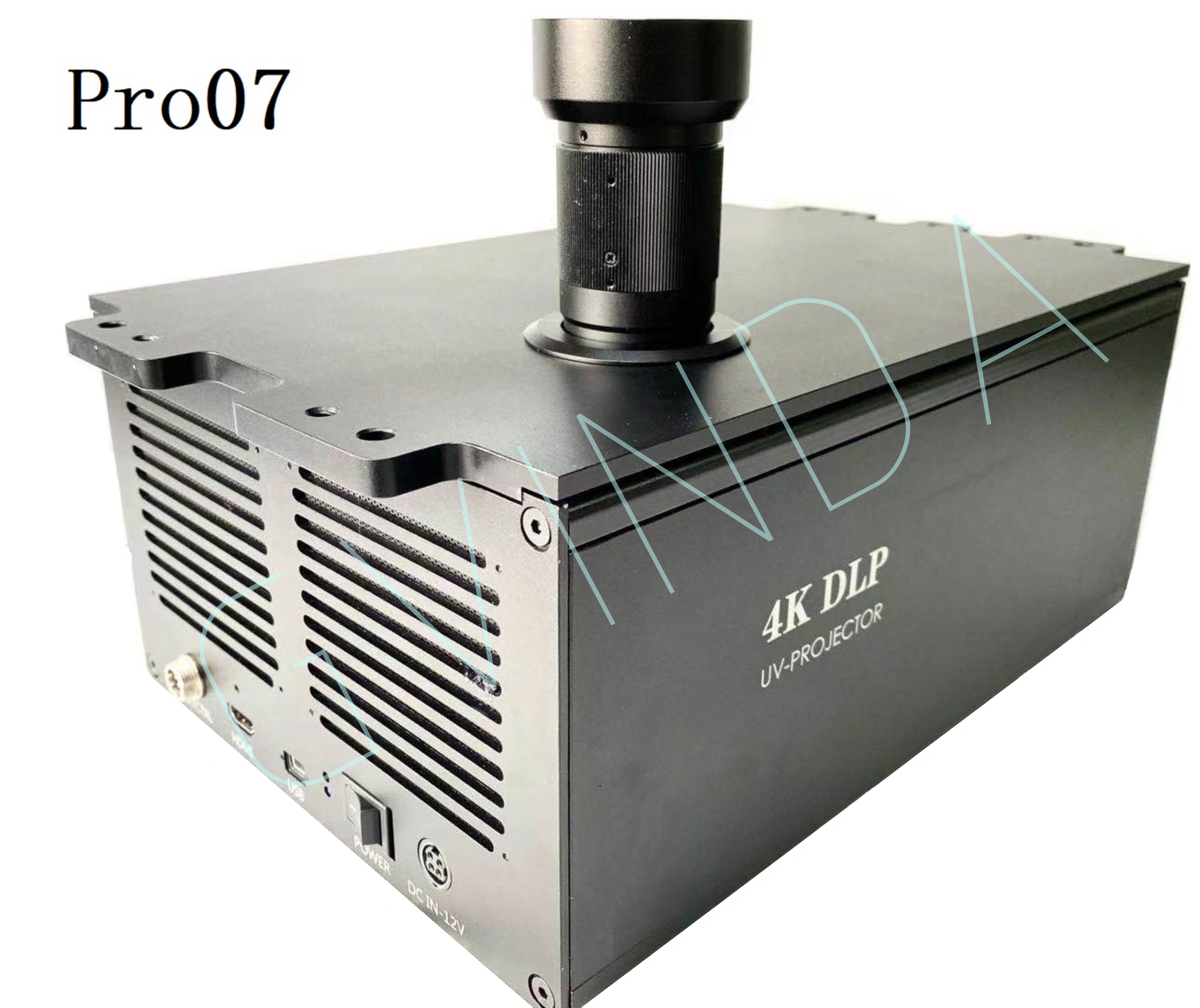

- Product Name：Pro07 [No:008]
- Type : Light-curing 3D printing
Detail 1.Overview:Pro07 light engine inside DLP 660te UHD DMD chipset, which is well suited for professional industrial 3D printer, the kit projection optical system have been optimized from 385nm to 405nm wavelength especially;use all glass lens and metallic body material to meet the industrial device requirement; also, several type of projection lens optionally could match with the projection optical system to meet the different printing image;Developers can easily manage the light power, create, store, through an easy-to-use graphical user interface from development platform;2．Features-
1. Enable build large objects .
- 2. Hight light power
-
3. Achieve different printing accuracy.
-
4. Dedicated for UV Lithography application.
-
5. Excellent optical performance
- 6. Easy installation to multiple unit integration
- 7.Common software platform : PDC05/PDC06/PDC07/Pro07
3．Sketch
4. Specifications
Display technique
TI DLP 0.66-inch 4K UHD DMD
Resolution
3840*2160 XPR
Light source
LED UV405/385nm
Light channel
Single channel
Optical power
6.5W@120W
Offset
Without offset
Contrast
1200:1
Uniformity
>92%
Offset
100%
Power supply
AC110V~240V，50/60HZ, DC12V/24V
Total power
<150W
Dimension
L336*W210*H204mm
Material
Body: All metal; Optics：All glass；
interface
DCIN(DNI-4)
HDMI-TYPEA
miniUSB
GX12-7:Exit LED_CTRL,PWR_CTRL,UART
5. Model
NO. Production name Printing Resolution Image@Work distance Optical distortion 1 Pro07-30 28-35um 115.2*64.8@158 0.10% 2 Pro07-40 38-45um 153.6*86.4@228 0.10% 3 Pro07-50 48-55um 192*108@295 0.10% 4 Pro07-75 70-85um 288*162@470 0.05% 5 Pro07-100 90-110um 384*216@650 0.05% * More information reference Pro07 user’ Guide
DCIN(DIN-4)
