- Nano biological 3D printing WEBSITE POSITION ：Home -- Products -- Nano biological 3D printing
-

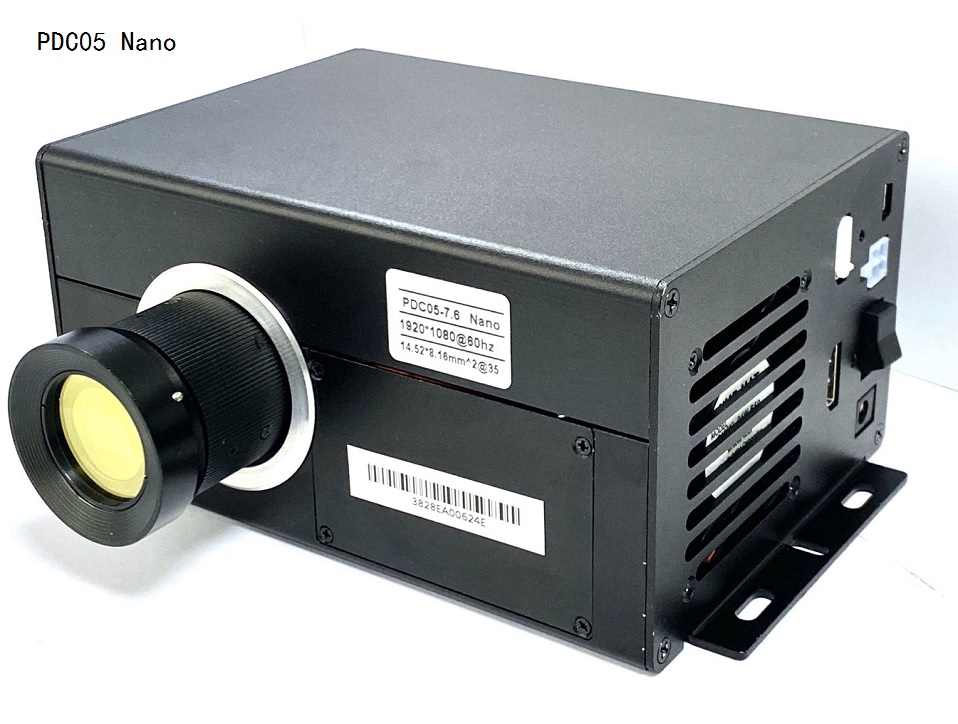

- Product Name：PDC05 nano [No:015]
- Type : Nano biological 3D printing
Detail - Overview:
The industrial micro nano 3D printing Light Engine is a compact optomechanical module that can be widely used in precision medicine, precision microelectronics, precision machinery, precision liquid control, biological science, and scientific research.
2. Product features:
※Ultra high precision and Low distortion;
※Compatible with multiple magnification lenses
※Lens with window protector, easy to maintain
3.Application:
※Micro nano photonics devices
※Microbial Medical Engineering
※Micro Electro Mechanical Systems (MEMS)
4. Product model
Model
PDC05-3.8
PDC05-7.6
PDC05-15.2
Resolution
DLP6500 1920*1080
DLP6500 1920*1080
DLP6500 1920*1080
Accuracy
3.8um
7.6um
15.2um
Area
7.3*4.1mm^2
14.6*8.2mm^2
29.2*16.4mm^2
WD
21.4mm
31mm
70mm
Distortion
0.10%
0.10%
0.10%
Wavelength
405/385nm
405/385nm
405/385nm
5Appearance
