- Nano biological 3D printing WEBSITE POSITION ：Home -- Products -- Nano biological 3D printing
-
- Product Name：PDC06 Nano [No:016]
- Type : Nano biological 3D printing
Detail 1.Overview
The industrial micro nano 3D printing Light Engine is a compact optomechanical module that can be widely used in precision medicine, precision microelectronics, precision machinery, precision liquid control, biological science, and scientific research.
2. Product features:
※Ultra high precision and Low distortion;
※Compatible with multiple magnification lenses
※Lens with window protector, easy to maintain
3.Application:
※Micro nano photonics devices
※Microbial Medical Engineering
※Micro Electro Mechanical Systems (MEMS)
4. Product model
Model
PDC06-2.7
PDC06-5.4
PDC06-10.8
Resolution
2560*1600
2560*1600
2560*1600
Accuracy
2.7um
5.4um
10.8um
Area
6.9*4.3mm^
13.8*8.6mm
27.6*17.3mm
WD
21.4mm
31mm
70mm
Distortion
0.10%
0.10%
0.10%
Wavelength
405/385nm
405/385nm
405/385nm

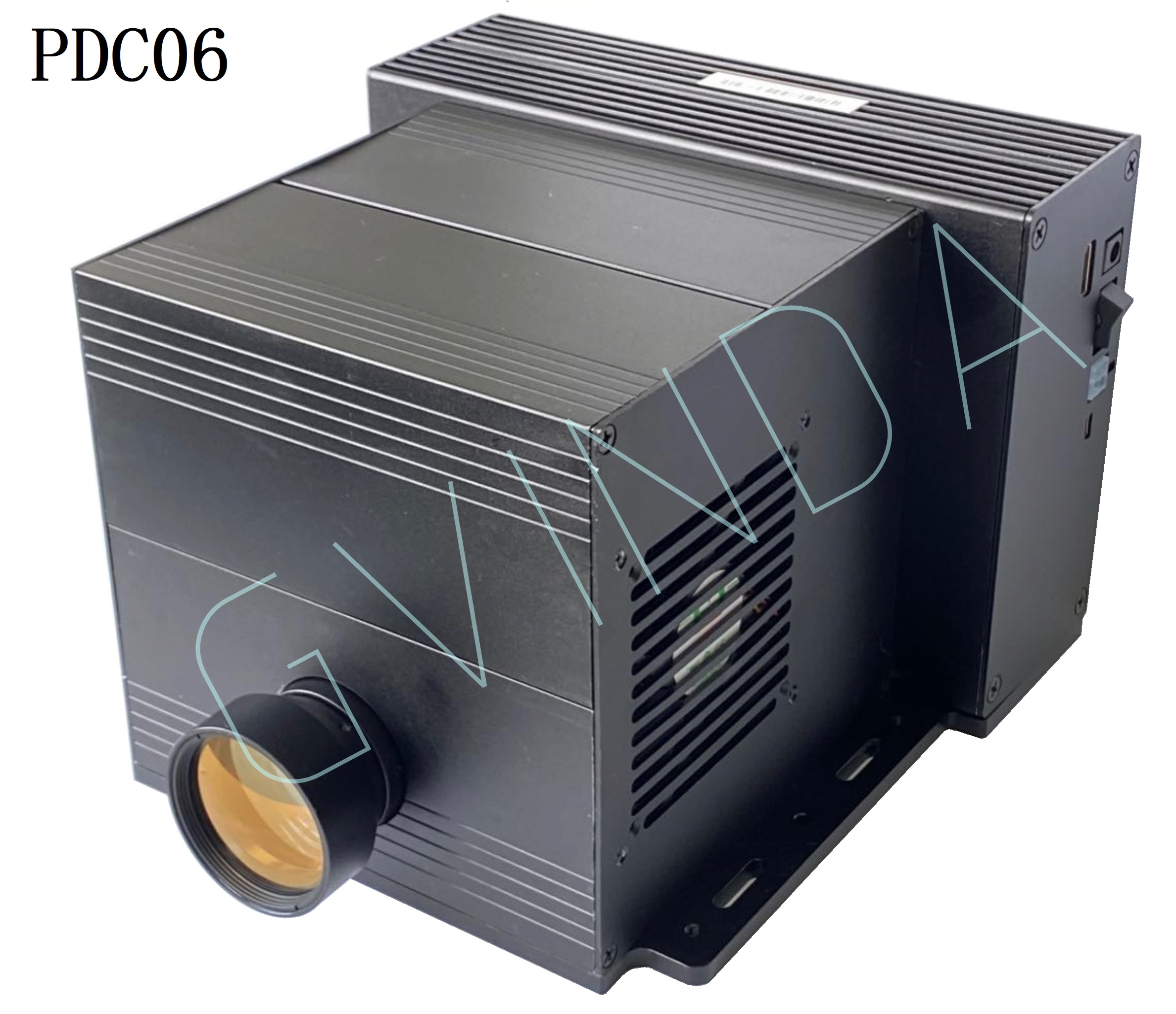

5. Appearance
